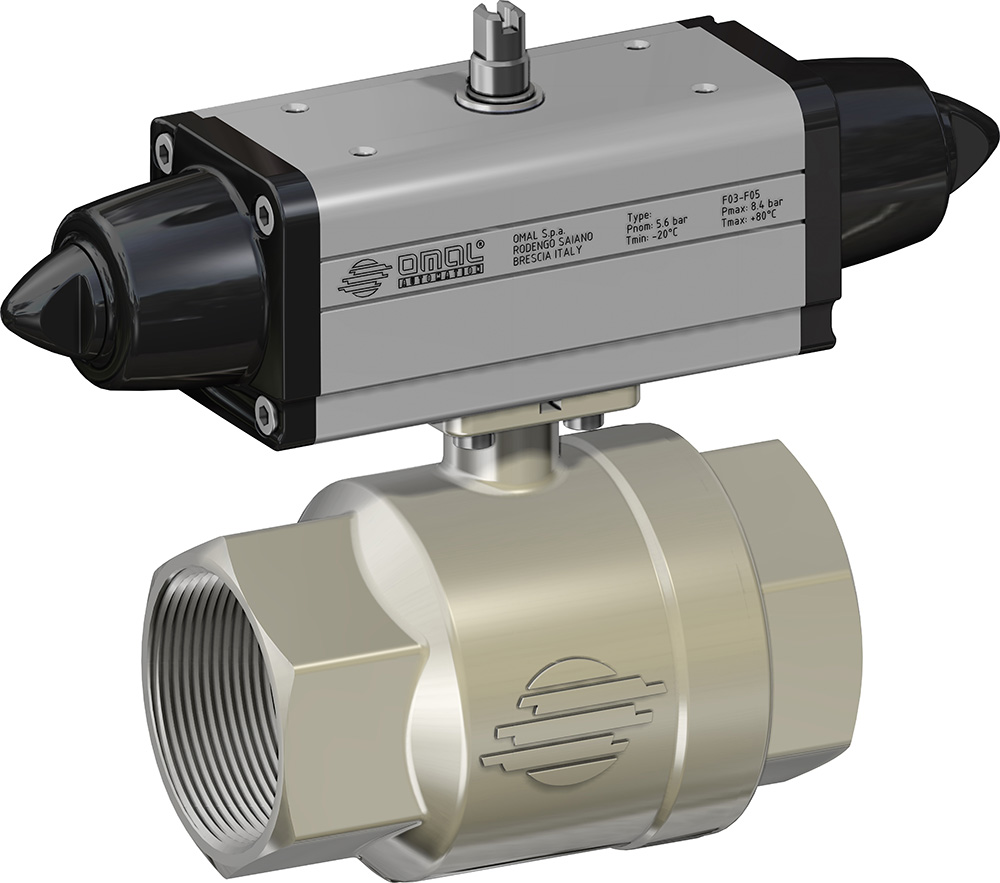

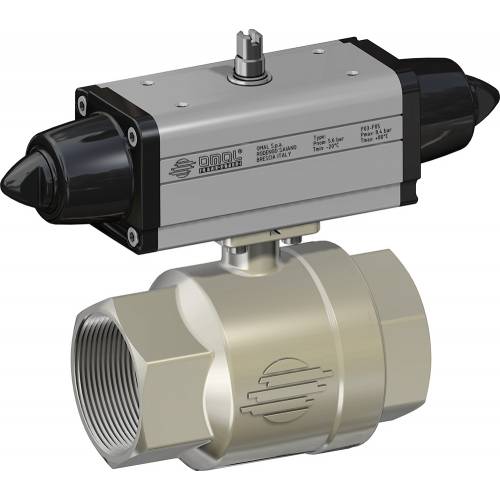

Valvola a sfera in ottone Item 101
Attuatore pneumatico SR ISO 7/1

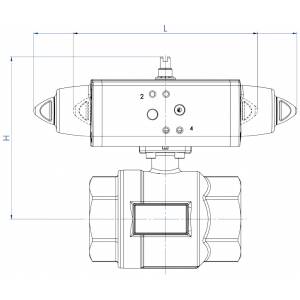

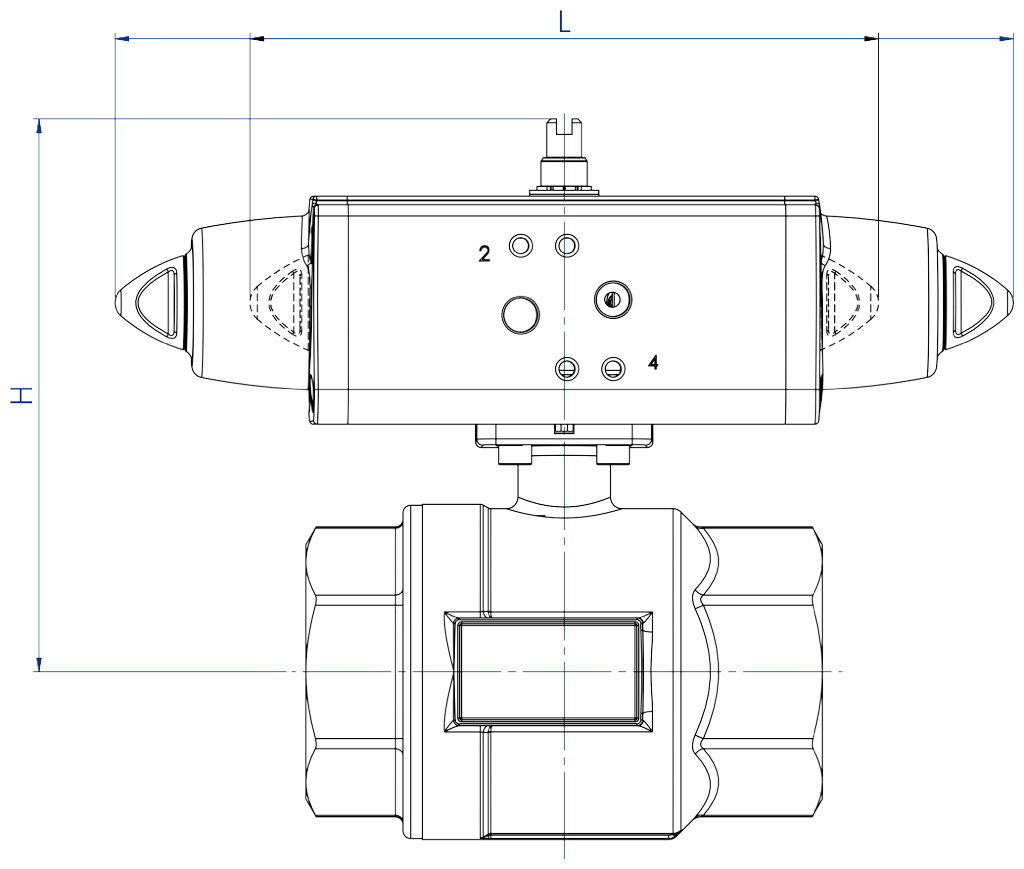

| Articolo | Misura | Pressione nominale | Attuatore | Valvola | H [mm] | L [mm] | Peso [kg] | Kit montaggio | |
|---|---|---|---|---|---|---|---|---|---|
| SG101H003 | DN 10 3/8” | PN 64 | SRN0015401S | V101N203 | 108.8 | 233.2 | 1.5 | KCF042565 | |
| SG101H004 | DN 15 1/2” | PN 64 | SRN0015401S | V101N204 | 108.8 | 233.2 | 1.5 | KCF042565 | |
| SG101H005 | DN 20 3/4” | PN 50 | SRN0015401S | V101N205G | 115.8 | 233.2 | 1.6 | KCF032558 | |
| SG101H006 | DN 25 1” | PN 50 | SRN0015401S | V101N206G | 119.8 | 233.2 | 1.9 | KCF032558 | |
| SG101H007 | DN 32 1” 1/4 | PN 40 | SRN0030401S | V101N207G | 141 | 258.8 | 3 | KCF055309 | |
| SG101H008 | DN 40 1” 1/2 | PN 40 | SRN0030401S | V101N208G | 148 | 258.8 | 3.4 | KCF055309 | |
| SG101H009 | DN 50 2” | PN 32 | SRN0053401S | V101N209 | 168.3 | 304.2 | 6 | KCF075310 | |
| SG101H010 | DN 65 2” 1/2 | PN 25 | SRN0090401S | V101N210 | 220.5 | 393.7 | 10.5 | KCF102730 | |
| SG101H011 | DN 80 3” | PN 25 | SRN0120401S | V101N211 | 235.5 | 409.6 | 14.5 | KCF102730 | |
