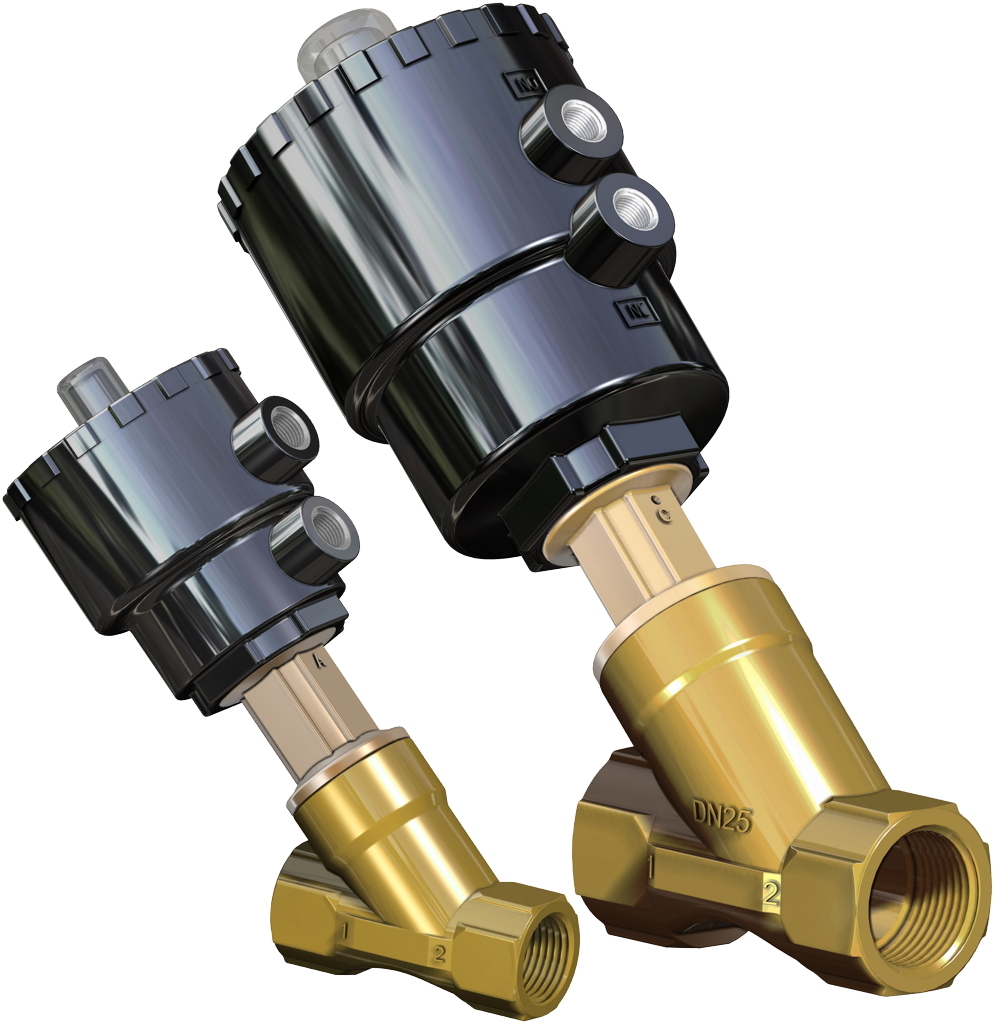

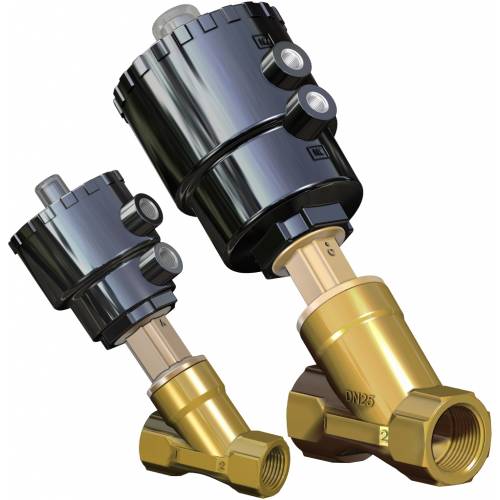

Valvola pneumatica ZEUS
Normal. Chiusa bidirezionale
| Articolo | Misura | Pressione nominale | Peso [kg] | Kit otturatore di ricambio | Kit testa di ricambio | P comando bar [min] | P comando bar [max] | Kv [m3/h] | Ø Testa comando | |
|---|---|---|---|---|---|---|---|---|---|---|
| J9SPG1403 | DN 15 3/8'' | PN 16 | 1.1 | KGJP2303 | J9SPG14R3 | 4.2 | 10 | 4.5 | 40 | |
| J9SPG1404 | DN 15 1/2'' | PN 16 | 1 | KGJP2303 | J9SPG14R4 | 4.2 | 10 | 5.3 | 40 | |
| J9SPG1405 | DN 20 3/4'' | PN 16 | 1.2 | KGJP2305 | J9SPG14R5 | 4.2 | 10 | 9.2 | 40 | |
| J9SPG1603 | DN 15 3/8'' | PN 16 | 1.1 | KGJP2003 | J9SPG16R3 | 4 | 10 | 4.9 | 50 | |
| J9SPG1604 | DN 15 1/2'' | PN 16 | 1 | KGJP2003 | J9SPG16R4 | 4 | 10 | 5.7 | 50 | |
| J9SPG1605 | DN 20 3/4'' | PN 16 | 1.2 | KGJP2005 | J9SPG16R5 | 4 | 10 | 10.5 | 50 | |
| J9SPG1805 | DN 20 3/4'' | PN 16 | 1.2 | KGJP2005 | J9SPG18R5 | 4 | 10 | 10.8 | 63 | |
| J9SPG1806 | DN 25 1'' | PN 16 | 1.6 | KGJP2006 | J9SPG18R6 | 4 | 10 | 20 | 63 | |
| J9SPG2106 | DN 25 1'' | PN 16 | 1.7 | KGJP2106 | J9SPG21R6 | 4 | 8 | 20 | 90 | |
| J9SPG2107 | DN 32 1”1/4 | PN 16 | 3 | KGJP2107 | J9SPG21R7 | 4 | 8 | 29 | 90 | |
| J9SPG2108 | DN 40 1”1/2 | PN 16 | 3.4 | KGJP2108 | J9SPG21R8 | 4 | 8 | 46 | 90 | |
| J9SPG2308 | DN 40 1”1/2 | PN 16 | 4 | KGJP2108 | J9SPG23R8 | 4 | 8 | 46.5 | 110 | |
| J9SPG2309 | DN 50 2'' | PN 16 | 5.8 | KGJP2109 | J9SPG23R9 | 4 | 8 | 67 | 110 | |
